GNSS RTK Receiver

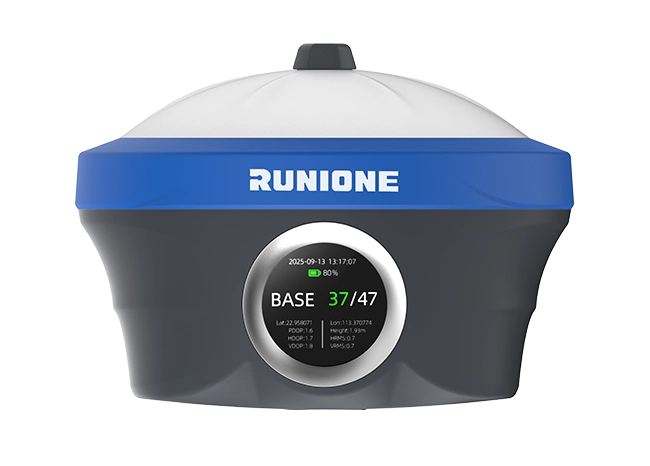

RS Base is a professional GNSS base station receiver with a built-in 5 W high-power UHF radio for long-range RTK operations. It supports multiple communication methods and efficient web-based configuration. Under ideal conditions, the 5 W radio provides up to 30 km of stable RTK coverage.
Stable Performance in Complex Environments
RS Base delivers high-precision, fast fix solutions, maintaining stable and reliable RTK positioning even in urban canyons or challenging field conditions, ensuring continuous availability of base station data.
Extended Survey Coverage
The built-in 5 W integrated UHF transceiver provides up to 30 km RTK coverage under ideal conditions, offering ample communication range for large survey areas and multiple rover operations.

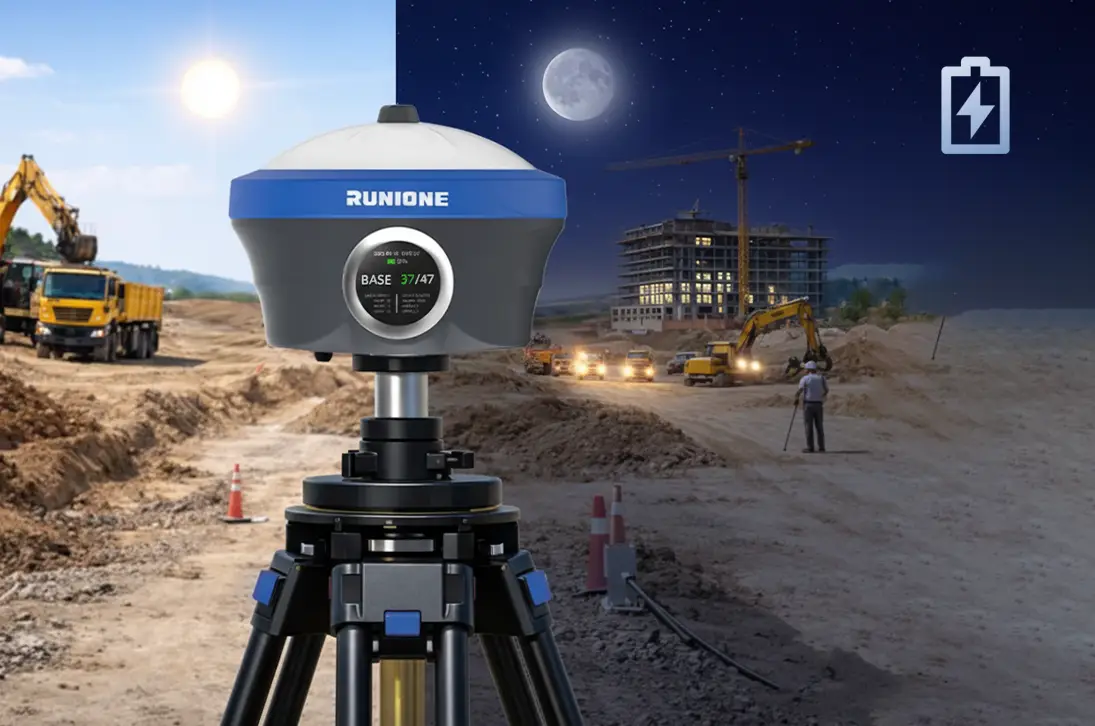

All-Day Continuous Operation
The built-in high-capacity battery supports full-day base station operation, reducing reliance on external power sources and ensuring uninterrupted, stable fieldwork.
Fast Base Station Setup

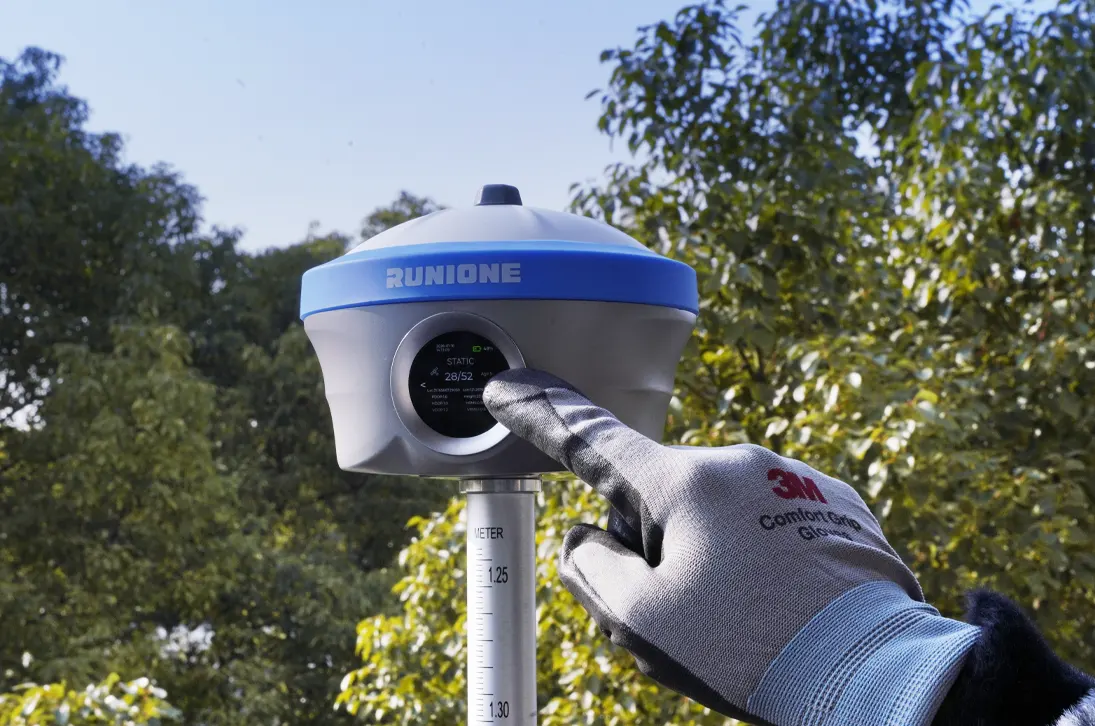

The round touch display allows on-device mode switching and parameter configuration, making base station deployment and status verification more intuitive and efficient.

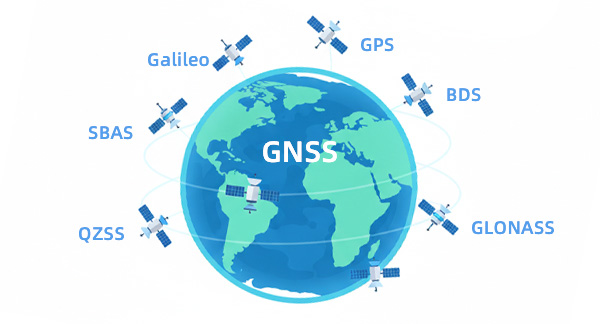

RS Base features a high-performance 1408-channel GNSS engine capable of tracking GPS, GLONASS, Galileo, BeiDou, QZSS and SBAS, providing stable and reliable positioning in challenging environments.
The integrated 5 W UHF radio supports multiple protocols and operates across 410–470 MHz with flexible channel selection. Under ideal conditions, it delivers RTK coverage of up to 30 km.

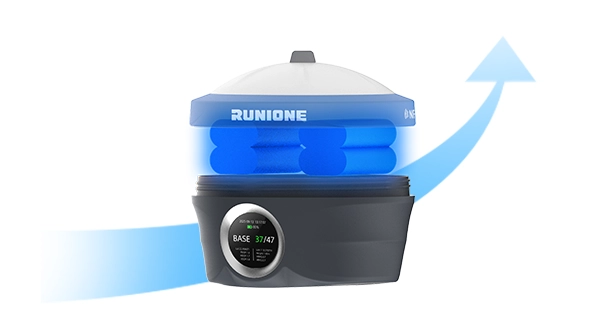

RS Base is equipped with a 13,200 mAh internal battery and supports USB Type-C fast charging, enabling up to 8 hours of continuous operation in typical field conditions.

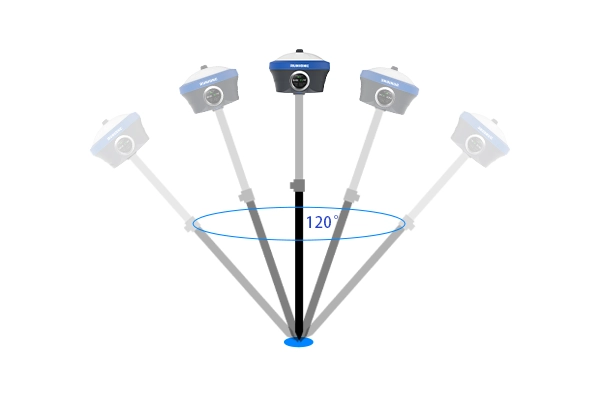

The built-in IMU enables automatic tilt compensation without manual initialization, ensuring stable attitude estimation under non-standard or slightly tilted installations.
| Physical Characteristics | |
| Dimension | 152 ×152 ×103 mm |
| Weight | 1.3kg |
| Button | 1 x Power |
| 1 x USB Type-C | Charging |
| 1 x SIM Card Slot | 1 x Nano-SIM card slot |
| 1 x 5-pin LEMO | power supply, RS232, external radio communication port |
| 1 x TNC | 1 x UHF antenna interface |
| Battery | built-in 7.2V 13200mAh |
| GNSS Performance | |
| Channels | 1408 |
| Signals tracking | GPS:L1C/A/L2P(Y)/L2C/L5 GLONASS:L1/L2 BDS:B1I/B2I/B3I/BIC/B2a/B2b Galileo:El/E5a/E5b/E6 QZSS:L1/L2/L5/L6 SBAS:L1 NavIC:L5 |
| RTK surveying (baseline<30km) | H:8mm+1ppm RMS V:15mm+1ppm RMS |
| Communication | |
| Internal UHF | 5.0 W receiver and transmitter |
| Wi-Fi | Soupport |
| Bluetooth | Soupport |
| NFC | Soupport |
| Cellular network | LTE-TDD B38/B40/B41 LTE-FDD B1/B3/B5/B7/B8/B20 UMTS/HSPA+ B1/B8 GSM/GPRS/EDGE 900/1800 MHz |
| Reliability | |
| Operating Temperature | – 30℃ to +70℃ |
| Storage Temperature | – 40℃ to +80℃ |
| Operating Humidity | 0% to 100% RH, non-condensing |
| Shock | MIL-STD-810H |
| Vibration | MIL-STD-810H |
| IP rating | IEC 60529-2013 IP67 |
